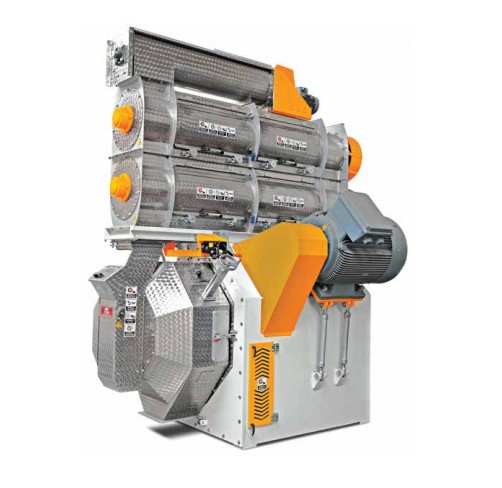

Pellet Mill

It provides to combine the materials that were for various purposes through pressing. Disc inside diameter 660 mm.Treat width 228 mm.Total width 290 mm.Pelletizing area 4727 cm2.Conic, with ring and screw connected.Disc inner speed 6,9 m/sec. Roll diameter 320 mm. Roll width 232 mm. Double Roll. With belt pulley transmission and double motor. It is driven by 15+15 total 30 pieces V pulley. Main motor 2 pieces 110 kw 1000 cycle/minute. Pellet chamber is 304 quality stainless steel. Pellet chamber security switch. Stable magnet. 1 piece chrome steel that was drilled through XT86, gun-drilling method, hardened and treated through vacuum, with ISO 9002 quality certificate. 1 set complete roll.
